Editbox

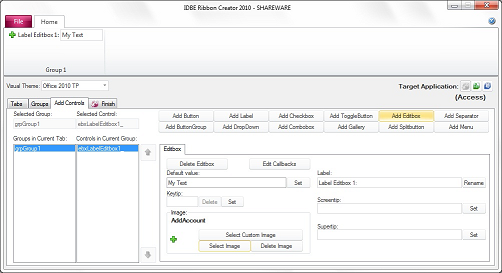

On the tab "Editbox" you can create, edit and delete single editbox controls.

• To create a new editbox click on the button labelled "Add Editbox"


1. On the list field labelled ”Groups in Current Tab” on the current tab select the group on which you want to create, edit or delete a control.

2. On the list field labelled „Controls in Current Group" select the editbox you want to delete or to edit.


• To delete the selected editbox click "Delete Editbox"

• To set a default value to the editbox enter a value to the text field labelled “Default Value” and click “Set”

• Select / Delete an editbox image:



• Click the button "Select Image" to open a dialog to choose an image.

• Click on the button "Select Custom Image" to select an image from your computer.

• To delete an editbox image click "Delete Image"





• To rename an editbox label edit the text shown below the label "Label:" und click "Rename" or just exit the input field.

• Screentip of a Button: Edit a text und click "Set"

• Supertip of a Button: Edit a text und click "Set"

• Edit Callbacks: Define other callbacks for the control.

• Keytip:
  • To assign a Keytip edit a text and click "Set".

  • Click "Delete" to remove the Keytip

    You may find further informations regarding the Keytips here.




• Edit Control ID:
  Click the button to use the Control ID Editor to set a customized ID to a control.







See also

Small Images | Callback calls / Tags | Keytips
