Groups

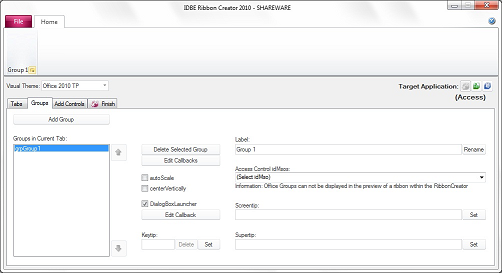

On the tab „Groups“ you can create, edit and delete single groups.

On the ribbon select the tab on which you want to create or edit a group.

• To create a new group click „Add Group”


• Delete a group:
  1. On the list field labelled "Groups in Current Tab" select the group you want to delete

  2. Click „Delete selected Group“




• To rename a group edit the text shown below the label „Rename Selected Group” and click „Rename” or just exit the input field.

• Check off the checkbox "Auto Scale" to ensure that the ribbon group controls will be automaticly scaled on the ribbon.

• You may now assign an image to a group that will be displayed if the group is pushed together.

  Select / Delete an image :

  • Click the button "Select Image" to open a dialog to choose an image corresponding to the selected size option.

  • Click on the button "Select Custom Image" to select an image from your computer.

  • Click "Delete Image" to remove an image from a group


• Check off the checkbox "CenterVertically" to ensure that the ribbon group controls will be automaticly aligned vertically on the ribbon.

• Edit Control ID:
  Click the button to use the Control ID Editor to set a customized ID to a control.

• To create a DialogboxLauncher on the group select the checkbox labelled „DialogBoxLauncher“

• Screentip of a DialogBoxLauncher: Enter a text and click „Set“
• Supertip of a DialogBoxLauncher: Enter a text and click „Set“

• Edit Callbacks: Edit Callbacks for the Control


• Access/Word/Excel Group idMsos:
  • Select an existing Access/Word/Excel Group-Command to link it with the group.

  • Select "(Select idMso)" to delete a linked command from a group.


  Information: Access/Word/Excel Groups can not be displayed in the preview of a ribbon within the RibbonCreator 2010.
